Ideal combination of functional requirements
and visual demands

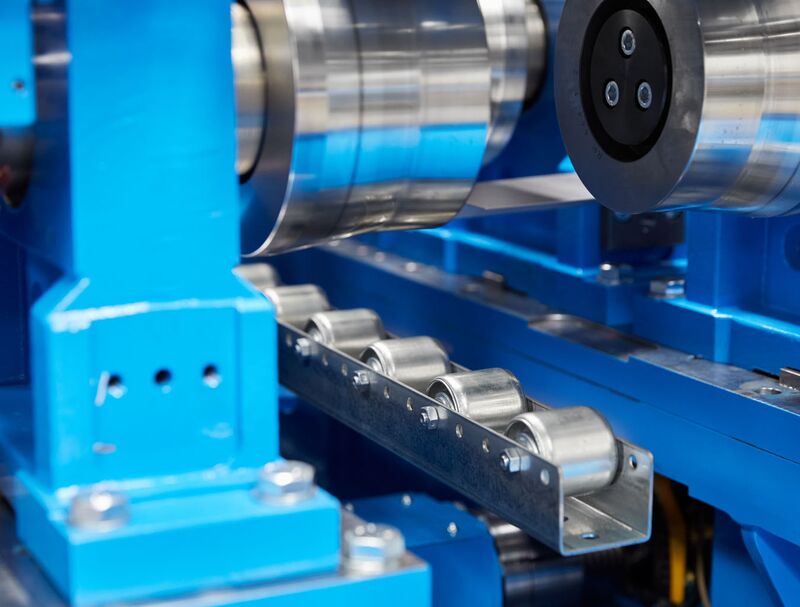

With our proven roll forming technology for rack shelves and rack rear panels, you combine functional requirements for lightweight and shop racks with particular visual demands.
Modular machine systems for your requirements
The combination of our roll forming machines for rack shelves and rack rear panels with application-specific processes such as roll embossing of reinforcements, spot welding, seam welding, clinching or laser welding ensure you benefit from safe operation with high load bearing capacity, low material input, an appealing design and low costs.

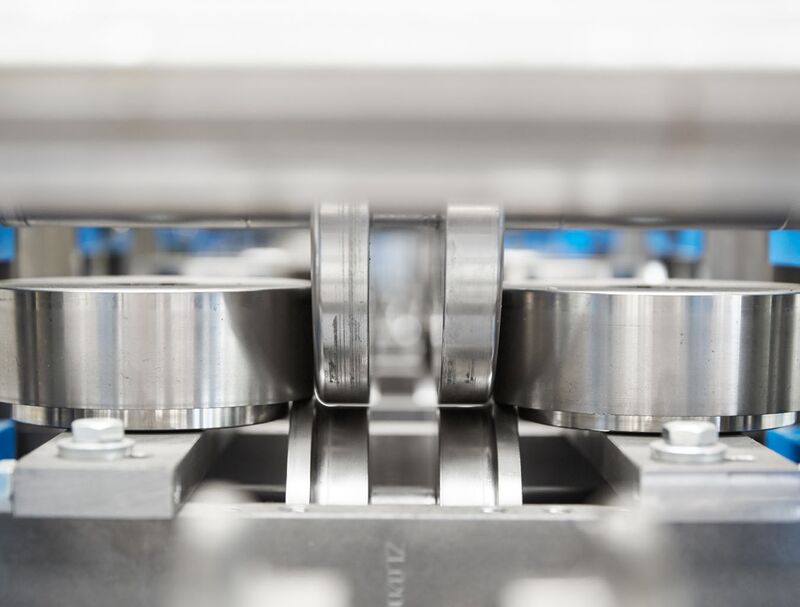

The typical lower shelf or the rear panel with application-dependent edge shape, are nowadays produced on extremely flexible double roll forming machines. The setting of the bottom width is performed quickly and continuously from the control console. The roll forming tools move automatically and with high precision to the preselected width.
With our intelligent cross-section design you achieve high load capacities for minimum material input. This is just one example of our highly varied roll forming technologies for rack shelves and rack rear panels: With our modular machine system, we can prepare a tailor made system for you to match every requirement. Our engineers will also advise you in all questions relating to optimum lower shelf production and support you in profile development.
Professional roll forming machines
clearly presented
Form your own impressions of the precision and reliability of our roll forming machines: The video shows you clearly some of the advantages of our roll forming systems and processes.
Examples of roll forming machines
for rack shelves and rear panels
With our roll forming machines for rack shelves and rack rear panels, we offer you the perfect solution for your production.
Strip preparation systems
Strip feeding systems are used for continuous supply of the roll forming system with the raw material, the flat strip. They make an important contribution to the productivity of the overall system and the quality of the parts. Highly automated strip systems perform a complete coil change in 3 minutes, including welding of the strip ends. Precision-alignment systems and a low-stress strip feed into the downstream punching or roll forming machines provide the necessary conditions for the production of precision components with the narrowest of tolerances. Dependent on the nature of the requirements, use of the more cost-efficient standard system is also justified. We supply you with the right strip feeding system as part of a coherent overall concept.
Roll forming machines
Roll forming machines for conventional tool change or fast tool change
Roll forming machines with motorised cross adjustment
Roll forming machines with motorised cross adjustment offer you quick and continuous adjustment of the profile width and height at the press of a button. Optionally available with motorised adjustment axes for automatic adjustment of the material thickness. The standard designs are suitable for material cross-sections of up to 1200 millimetre x 1.5 millimetre with automatic material thickness and throughput monitoring systems for strip processing
Options
- Combined cut-off/bending technology for parts with end tilting
- Inline bending machines for end tilting during strip processing
- Integrated clinch, spot or laser welding systems
- Stacking systems
- Systems for the production and integration of reinforcement profiles (Omega)
